NI-9205
500.00$
Condition: Second hand and in good condition(Please contact the website administrator to purchase a new device)
Purchase: Please contact the website administrator to verify the actual price before purchasing
Maximum Number of Differential Analog Input Channels: 16
Analog Input Voltage Range: -1 V to 1 V, -10 V to 10 V, -200 mV to 200 mV, -5 V to 5 V
Enclosed: Yes
Analog Input Resolution: 16 bits
Maximum Sample Rate: 250 kS/s
Maximum Number of Single-Ended Analog Input Channels: 32
Simultaneous Sampling: No
Supported Hardware Platform: C Series
- Shanghai Cehuibao Technology Co., Ltd is not affiliated with or a distributor for Keysight. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

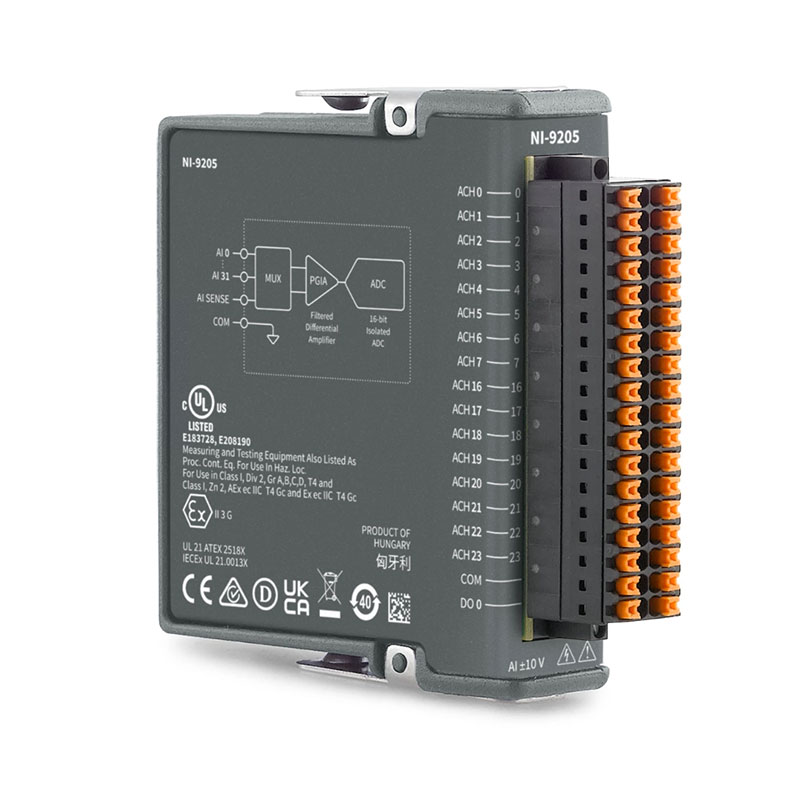

NI-9205 C Series Voltage Input Module
±10 V, 250 kS/s, 16-Bit, 32-Channel C Series Voltage Input Module
The NI-9205 helps you measure up to 32 single-ended or 16 differential voltage inputs within the same module. This module includes a multiplexed front-end that combines a programmable gain instrumentation amplifier featuring four programmable ranges from ±10 V down to ±0.2 V with a 16-bit ADC for accurate measurements. Additionally, the NI-9205 features both isolation and overvoltage protection to maximize measurement performance and protect against miswiring. The NI-9205 is available in either 36-position spring-terminal or 37-position D-SUB connector options.
Part Number(s): 780173-01 | 785184-01 | 779357-01
