NI-9220

2,300.00$

Condition: Second hand and in good condition(Please contact the website administrator to purchase a new device)
Purchase: Please contact the website administrator to verify the actual price before purchasing

Product Details

Maximum Number of Differential Analog Input Channels: 16
Analog Input Voltage Range: -10 V to 10 V
Enclosed: Yes
Analog Input Resolution: 16 bits
Maximum Sample Rate: 100 kS/s/ch
Maximum Number of Single-Ended Analog Input Channels: 0
Simultaneous Sampling: Yes
Supported Hardware Platform: C Series

Shanghai Cehuibao Technology Co., Ltd is not affiliated with or a distributor for Keysight. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

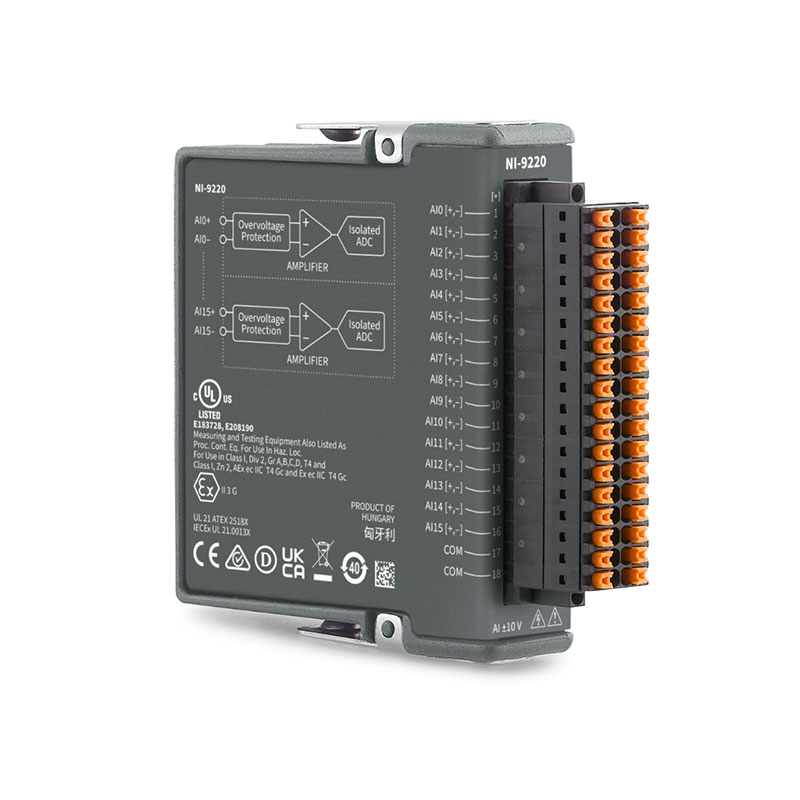

NI-9220 Voltage Input Module

±10 V, 100 kS/s/ch, 16-Bit, Simultaneous Input, 16-Channel C Series Voltage Input Module

The NI‑9220 performs simultaneous differential analog inputs with 250 Vrms CAT II or 60 VDC CAT I isolation. The module is capable of generating 3.2 MB/s of data at the maximum sampling rate. There are two connector options for the NI‑9220: a 36-position spring-terminal connector and a 37‑position D‑SUB connector.

Part Number(s): 782615-02 | 782615-01 | 785188-01
