NI-9222
1,200.00$
Condition: Second hand and in good condition(Please contact the website administrator to purchase a new device)
Purchase: Please contact the website administrator to verify the actual price before purchasing
Maximum Number of Differential Analog Input Channels: 4
Conformal Coated: No
Analog Input Voltage Range: -10 V to 10 V
Enclosed: Yes
Analog Input Resolution: 16 bits
Maximum Sample Rate: 500 kS/s/ch
Analog Input Isolation: 60 VDC Ch-Ch Isolation
Maximum Number of Single-Ended Analog Input Channels: 0
Simultaneous Sampling: Yes
Supported Hardware Platform: C Series
- Shanghai Cehuibao Technology Co., Ltd is not affiliated with or a distributor for Keysight. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

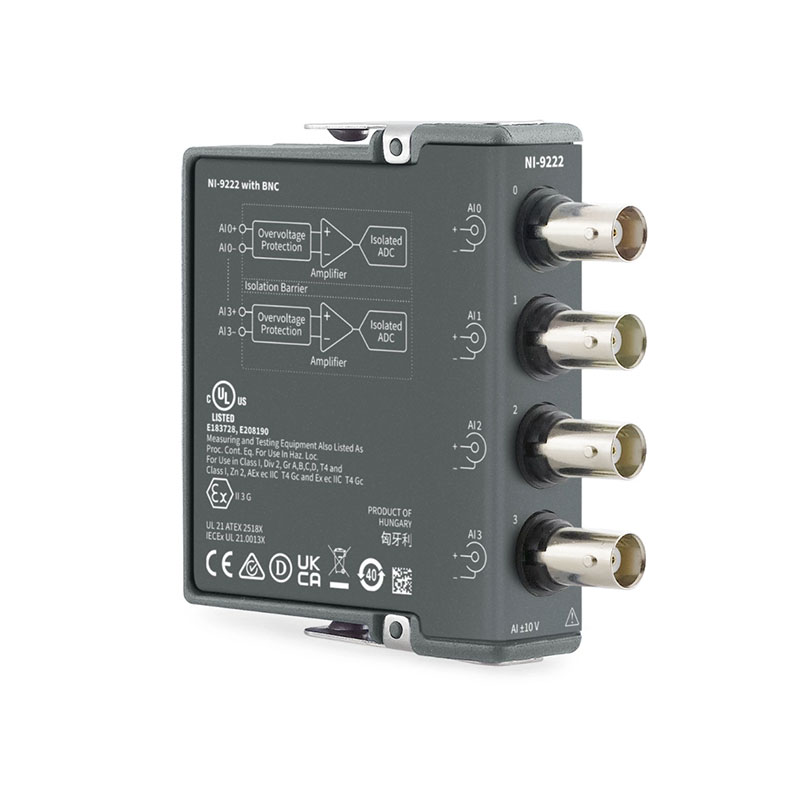

NI-9222 Voltage Input Module
±10 V, 500 kS/s/ch, 16-Bit, Simultaneous Input, 4-Channel C Series Voltage Input Module
The NI‑9222 performs differential analog input. This module is well suited for applications such as ballistics, impact, and blast wave testing. The NI‑9222 can sample at the maximum sample rate per channel while the module next to it samples at a much slower rate, which is ideal for mixed-measurement test systems. There are three connector options for the NI‑9222: a 10‑position screw terminal, a 25‑pin D‑SUB connector, or a 2-pin BNC connector.
Part Number(s): 783283-01 | 781397-01 | 789124-01
