NI-9225
700.00$
Condition: Second hand and in good condition(Please contact the website administrator to purchase a new device)
Purchase: Please contact the website administrator to verify the actual price before purchasing
Maximum Number of Differential Analog Input Channels: 3
Analog Input Voltage Range: 300 Vrms
Enclosed: Yes
Analog Input Resolution: 24 bits
Maximum Sample Rate: 50 kS/s/ch
Analog Input Isolation: 600 Vrms Ch-Ch Isolation
Maximum Number of Single-Ended Analog Input Channels: 0
Front Connection Type: Screw Terminal, Screw Terminal, Screw Terminal
Simultaneous Sampling: Yes
Supported Hardware Platform: C Series
- Shanghai Cehuibao Technology Co., Ltd is not affiliated with or a distributor for Keysight. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

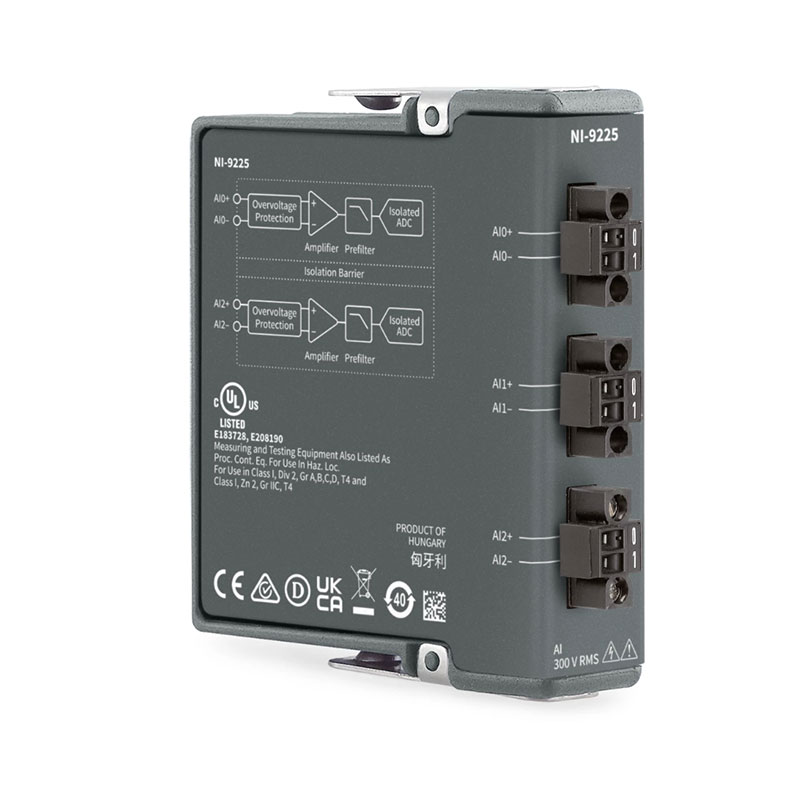

NI-9225 C Series Voltage Input Module
300 Vrms, 50 kS/s/ch, 24-Bit, Simultaneous Input, 3-Channel C Series Voltage Input Module
The NI‑9225 performs differential analog input. The wide measurement range is well suited for high-voltage measurement applications such as power metering, power quality monitoring, motor test, battery stack testing, and fuel cell tests. You can perform transient and harmonic analysis with high-speed simultaneous sampling. In addition, you can prevent ground loops and add safety to a system with 600 Vrms channel‑to‑channel isolation between the three NI‑9225 channels.
Part Number(s): 780159-02 | 780159-01
