PXI-7854
3,650.00$
Condition: Second hand and in good condition(Please contact the website administrator to purchase a new device)
Purchase: Please contact the website administrator to verify the actual price before purchasing
Maximum Sample Rate: 750 kS/s
Bus Connector: PXI Hybrid
Maximum Clock Rate: 40 MHz
Number of Bidirectional Digital Channels: 96
Digital I/O Logic Levels: 3.3 V
Dynamic RAM (DRAM): 0 MB
FPGA: Virtex-5 LX110
Analog Input Voltage Range: -10 V to 10 V
Supports Peer To Peer Streaming: No
Number of Analog Input Channels: 8
Number of Analog Output Channels: 8
- Shanghai Cehuibao Technology Co., Ltd is not affiliated with or a distributor for Keysight. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

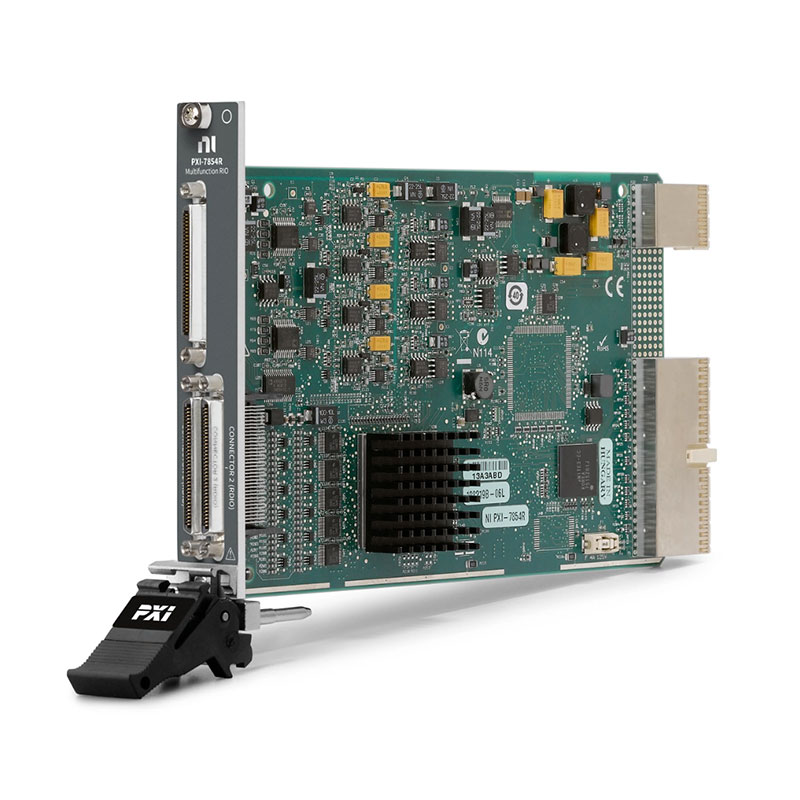

NI PXI-7854 Multifunction Reconfigurable I/O Module
Virtex-5 LX110 FPGA, 750 kS/s PXI Multifunction Reconfigurable I/O Module
The PXI‑7854 features a user-programmable FPGA for high-performance onboard processing and direct control over I/O signals to ensure complete flexibility of system timing and synchronization. You can customize these devices with the LabVIEW FPGA Module to develop applications requiring precise timing and control such as hardware‑in‑the‑loop testing, custom protocol communication, sensor simulation, and high-speed control. The PXI‑7854 features a dedicated A/D converter (ADC) per channel for independent timing and triggering. This design offers specialized functionality such as multirate sampling and individual channel triggering, which are outside the capabilities of typical data acquisition hardware.
Part Number(s): 780342-01
