PXIe-6363
Original price was: 2,500.00$.1,780.00$Current price is: 1,780.00$.
Condition: Second hand and in good condition(Please contact the website administrator to purchase a new device)
Purchase: Please contact the website administrator to verify the actual price before purchasing
Maximum Number of Single-Ended Analog Input Channels: 32
Analog Input Resolution: 16 bits
Maximum Sample Rate: 2 MS/s
Number of Analog Output Channels: 4
Maximum Update Rate: 2.86 MS/s
Bus Connector: PXI Express
Number of Bidirectional Digital Channels: 48
Electrical Signal Measured: Voltage
Analog Input FIFO Buffer Size: 2047 samples
Maximum Number of Differential Analog Input Channels: 16
Current Flow Direction: –
Simultaneous Sampling: No
Analog Input Absolute Accuracy: 1660 μV
Number of Counters/Timers: 4
- Shanghai Cehuibao Technology Co., Ltd is not affiliated with or a distributor for Keysight. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

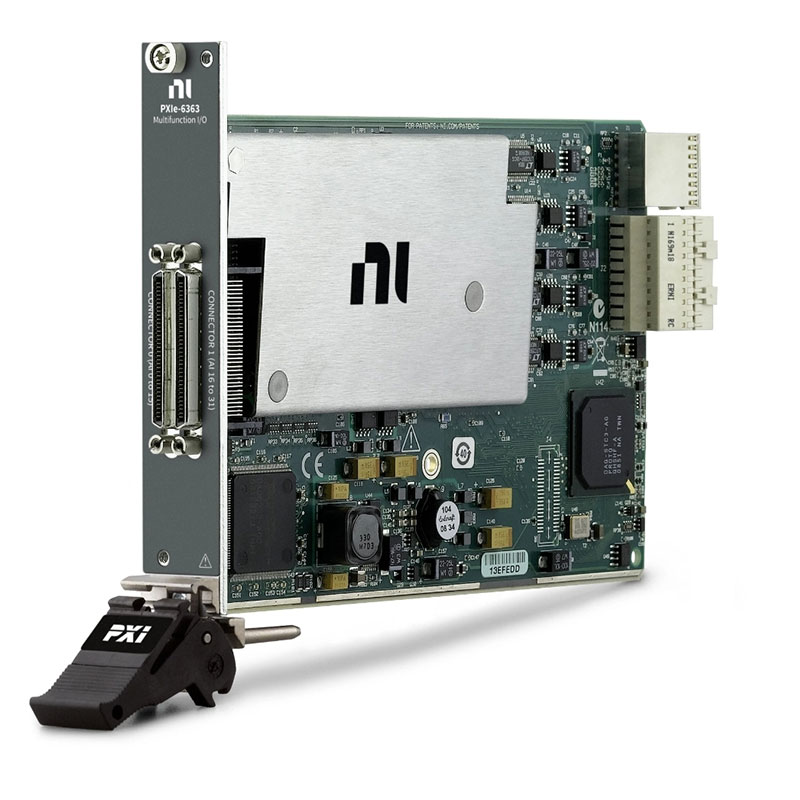

NI PXIe-6363 Multifunction I/O Module
PXIe, 32 AI (16-Bit, 2 MS/s), 4 AO, 48 DIO, PXI Multifunction I/O Module
The PXIe‑6363 offers analog I/O, digital I/O, and four 32‑bit counter/timers for PWM, encoder, frequency, event counting, and more. The device delivers high-performance functionality leveraging the high-throughput PCI Express bus and multicore-optimized driver and application software. Onboard NI‑STC3 timing and synchronization technology delivers advanced timing functionality, including independent analog and digital timing engines and retriggerable measurement tasks. The PXIe‑6363 is well-suited for a broad range of applications, from basic data logging to control and test automation. The included NI‑DAQmx driver and configuration utility simplify configuration and measurements.
Part Number(s): 781056-01
