PXIe-6509
Original price was: 1,200.00$.880.00$Current price is: 880.00$.
Condition: Second hand and in good condition(Please contact the website administrator to purchase a new device)
Purchase: Please contact the website administrator to verify the actual price before purchasing
Bus Connector: PXI Express
Single-Ended Digital I/O Channel Current Drive: 24 mA
Digital I/O Logic Levels: 5 V
Number of Digital Input Only Channels: 0
Number of Digital Output Only Channels: 0
Number of Bidirectional Digital Channels: 96
Digital Input Voltage Range: 0 V to 5 V
Output Voltage Range: 0 V to 5.5 V
Maximum Clock Rate: –
Signaling Type: Single-Ended
- Shanghai Cehuibao Technology Co., Ltd is not affiliated with or a distributor for Keysight. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

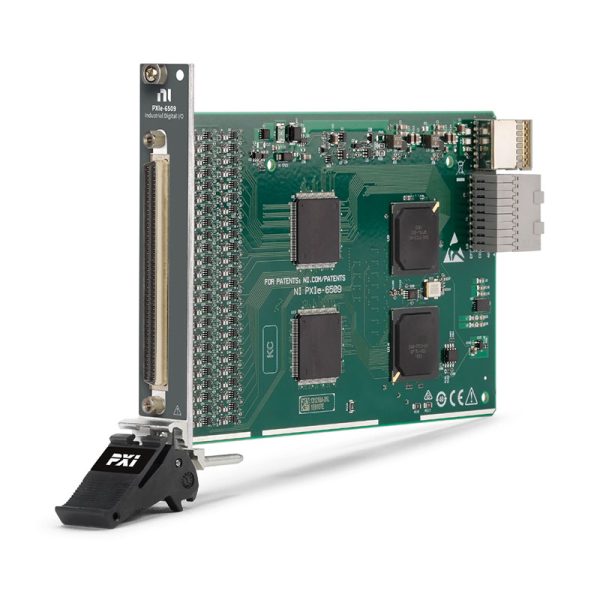

NI PXIe-6509 Digital I/O Module
PXIe, 96-Channel, 5 V, TTL/CMOS, 24 mA PXI Digital I/O Module
The PXIe-6509 can directly drive external digital devices such as solid-state relays (SSRs). You can configure each line for input or output and you also can configure each line with a user-configurable pull-up or pull-down resistor. Using the PXIe-6509 programmable power-up states, you can configure the initial output states in software to ensure glitch-free, safe operations when connected to industrial actuators. The PXIe-6509 can use digital I/O watchdogs to switch to a configurable safe output state to ensure detection and safe recovery from fault conditions. The PXIe-6509 provides programmable input filters for eliminating glitches or spikes and for debouncing digital switches or relays through a software-selectable digital filter.
Part Number(s): 787358-01
