PXIe-7976

Condition: Second hand and in good condition(Please contact the website administrator to purchase a new device)
Purchase: Please contact the website administrator to verify the actual price before purchasing

Product Details

Block RAM (BRAM): 28620 kbit
Dynamic RAM (DRAM): 2 GB
FPGA: Kintex-7 410T
PXI Backplane Link: PCI-Express Gen2 x 8
FPGA Slices: 63550
DSP Slices: 1540

Shanghai Cehuibao Technology Co., Ltd is not affiliated with or a distributor for Keysight. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

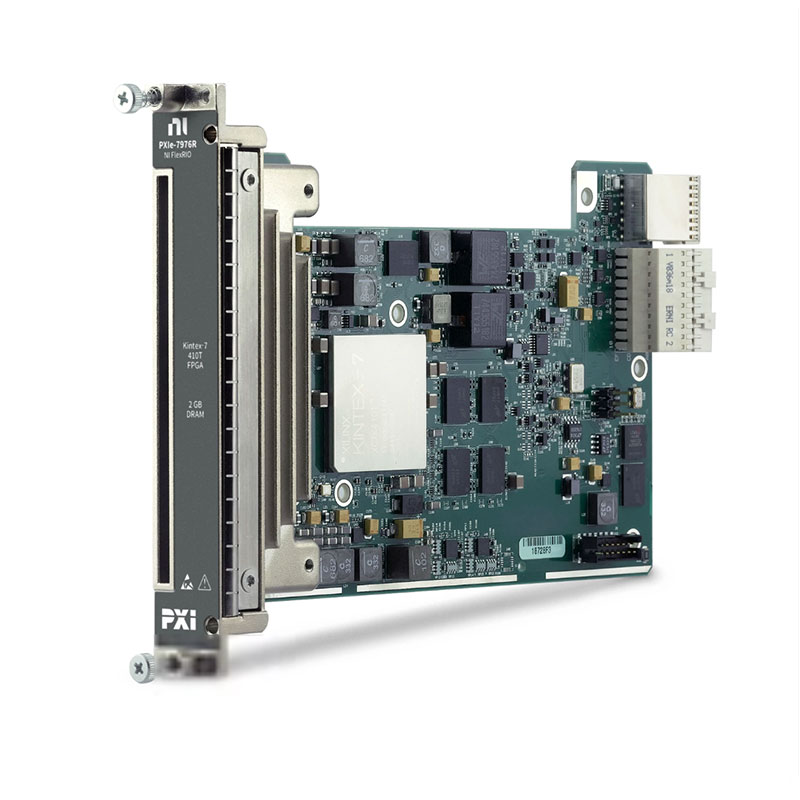

NI PXIe-7976 FPGA Module for FlexRIO

PXIe, K410T FPGA, 3.2 GB/s, 2 GB DRAM PXI FPGA Module for FlexRIO

The PXIe‑7976 provides flexible, customizable I/O for LabVIEW FPGA. It includes 136 single-ended I/O lines configurable as 68 differential pairs. You can pair the PXIe‑7976 with FlexRIO adapter modules that offer high-performance analog and digital I/O. Together, the two modules create a reconfigurable instrument that you can program with LabVIEW FPGA software. The PXIe‑7976 supports peer‑to‑peer streaming, which directly transfers data among multiple FPGA modules or select PXI Express modules without sending data to the host processor. With this feature, you can add FPGA capabilities to high-performance NI digitizers with NIST‑traceable calibration or expand your FPGA algorithms across multiple FPGAs for computationally demanding applications.

Part Number(s): 783625-01
