PCI Systems – Detailed Introduction

1. Overview

PCI (Peripheral Component Interconnect) systems are a widely used computer bus architecture for industrial automation, data acquisition (DAQ), and test & measurement applications. The PCI interface provides high-speed data transfer capabilities, making it ideal for applications requiring high bandwidth and low latency.

With technological advancements, PCI has evolved into PCI Express (PCIe), offering even higher throughput and lower latency, making it a core interface in modern measurement and control systems.

2. Key Features

✅ High-Speed Data Transfer:

• PCI: Theoretical bandwidth of 133 MB/s (32-bit @ 33MHz) or 533 MB/s (64-bit @ 66MHz)

• PCIe: Uses serial differential signaling, with single-lane (x1) speeds from 250 MB/s (PCIe 1.0) to ~2 GB/s (PCIe 4.0 x1), with x16 slots reaching 32 GB/s (PCIe 4.0)

✅ Low Latency: Suitable for real-time control and high-precision measurements.
✅ Plug-and-Play (PnP): Supports hot-swapping (for some PCIe devices).
✅ Broad Compatibility: Works with industrial PCs, servers, and embedded systems.
✅ Multi-Device Support: A single system can host multiple PCI/PCIe devices.

3. Hardware Architecture

(1) PCI Standard

• 32-bit/33MHz (Classic PCI, 133 MB/s)

• 64-bit/66MHz (High-end servers/workstations, 533 MB/s)

• 3.3V/5V Compatibility (Different slot types)

(2) PCI Express (PCIe)

• Serial Differential Signaling (Replaces PCI’s parallel bus)

• Lane Configurations: x1, x4, x8, x16 (Bandwidth scales with lanes)

• Generational Evolution:

  PCIe Version	Per-Lane Bandwidth	x16 Total Bandwidth
  PCIe 1.0	250 MB/s	4 GB/s
  PCIe 2.0	500 MB/s	8 GB/s
  PCIe 3.0	985 MB/s	15.75 GB/s
  PCIe 4.0	1.97 GB/s	31.5 GB/s
  PCIe 5.0	3.94 GB/s	63 GB/s

4. PCI/PCIe Data Acquisition (DAQ) Systems

(1) Typical Applications

• High-speed data acquisition (Oscilloscopes, vibration analysis)

• Industrial automation (PLC, motion control)

• Machine vision (High-speed camera interfaces)

• Hardware-in-the-Loop (HIL) testing (Automotive ECU validation)

• Scientific research (High-energy physics, biosignal monitoring)

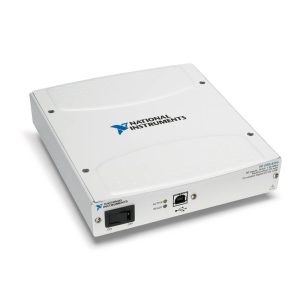

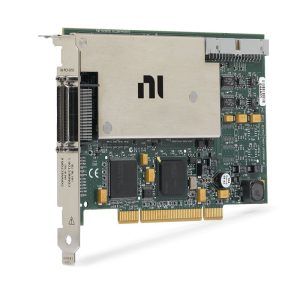

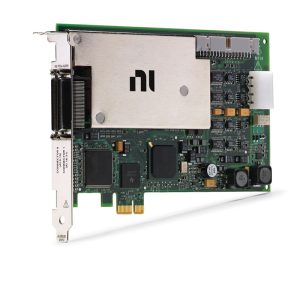

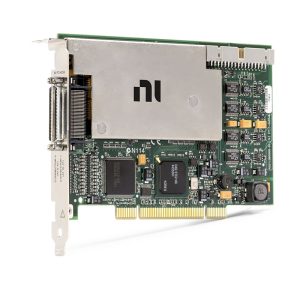

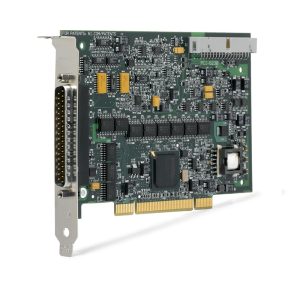

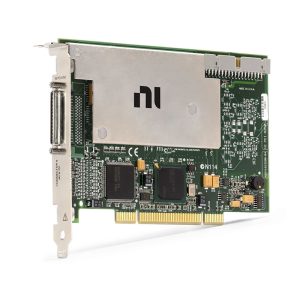

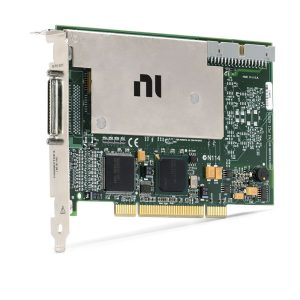

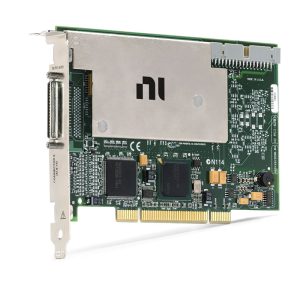

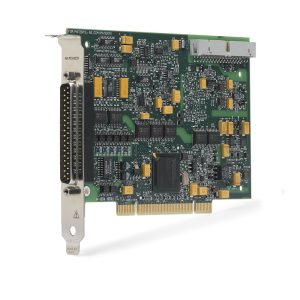

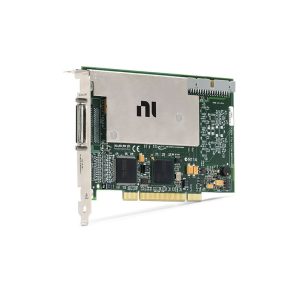

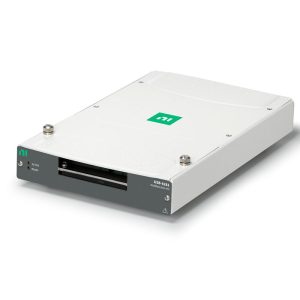

(2) Common PCI/PCIe DAQ Devices

5. Software Support

PCI/PCIe devices typically rely on drivers and software, such as:

• NI-DAQmx (National Instruments DAQ driver)

• LabVIEW (Graphical programming for rapid development)

• C/C++/Python (Control via APIs)

• MATLAB (Using Data Acquisition Toolbox)

6. PCI vs. PCIe Comparison

7. Typical Use Cases

🔹 Industrial Automation: PLC control, robotic motion control (e.g., NI PCI-7350)
🔹 High-Speed DAQ: Vibration analysis, acoustic measurement (e.g., NI PCIe-6363)
🔹 Machine Vision: High-speed imaging, defect detection (e.g., NI PCIe-1433)
🔹 Automotive Testing: ECU simulation, HIL testing (e.g., NI PCIe-7856R FPGA card)

8. Future Trends

• PCIe 5.0/6.0 enables higher bandwidth for AI acceleration and ultra-fast DAQ.

• FPGA + PCIe is becoming the standard for real-time control and high-performance computing.

• USB4/Thunderbolt may replace PCIe in some scenarios (external DAQ devices).

9. Conclusion

PCI/PCIe systems remain critical for high-performance DAQ, industrial automation, and real-time control.
✔ PCIe offers superior bandwidth and lower latency for modern measurement needs.
✔ NI and others provide extensive PCIe DAQ solutions, supporting LabVIEW, Python, and more.
✔ PCIe 5.0/6.0 will further advance high-speed measurement and AI computing.

PCI/PCIe systems continue to play an indispensable role in research, industry, and automotive electronics.
