NI-9231

5,000.00$

Condition: Second hand and in good condition(Please contact the website administrator to purchase a new device)
Purchase: Please contact the website administrator to verify the actual price before purchasing

Product Details

Maximum Number of Differential Analog Input Channels: 8
Conformal Coated: No
IEPE Excitation: 2 mA
Analog Input Voltage Range: -5 V to 5 V
Enclosed: Yes
Maximum Sample Rate: 51.2 kS/s/ch
Front Connection Type: 10-32 Coaxial, 10-32 Coaxial, 10-32 Coaxial, 10-32 Coaxial, 10-32 Coaxial, 10-32 Coaxial, 10-32 Coaxial, 10-32 Coaxial
Analog Input Isolation: None
Supported Hardware Platform: C Series

Shanghai Cehuibao Technology Co., Ltd is not affiliated with or a distributor for Keysight. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

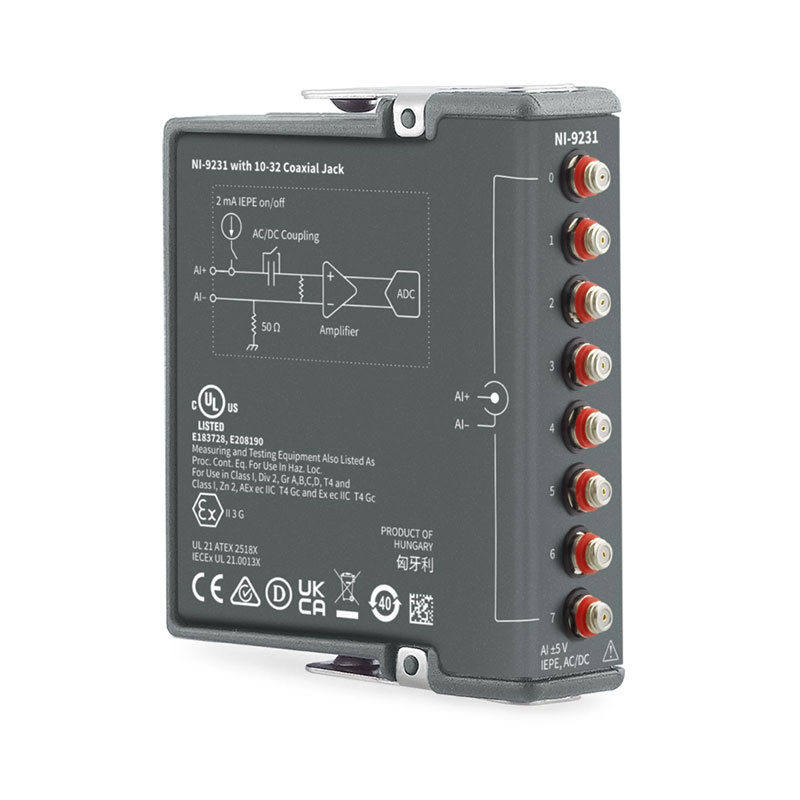

NI-9231 C Series Sound and Vibration Input Module

8-Channel, 51.2 kS/s/channel, -5 V to 5 V, C Series Sound and Vibration Input Module

The NI-9231 is a high-density sound and vibration module that can measure signals from integrated electronic piezoelectric (IEPE) and non-IEPE sensors such as accelerometers, tachometers, and proximity probes. It can perform the high dynamic range measurements necessary for modern measurement microphones and accelerometers and features simultaneous sampling. The NI-9231 incorporates both a TEDS input path and 2 mA of IEPE signal excitation source that can be turned on and off, removing the need for external sensor power and reducing the complexity of the data acquisition system.

Part Number(s): 783610-01
