NI-9235

2,500.00$

Condition: Second hand and in good condition(Please contact the website administrator to purchase a new device)
Purchase: Please contact the website administrator to verify the actual price before purchasing

Product Details

Bridge Configurations: –
Maximum Number of Differential Analog Input Channels: 8
Conformal Coated: No
Analog Input Voltage Range: -29.4 mV/V to 29.4 mV/V
Enclosed: Yes
Maximum Sample Rate: 10 kS/s/ch
Front Connection Type: Spring Terminal
Supported Hardware Platform: C Series
Bridge Resistance: 120 Ohm

Shanghai Cehuibao Technology Co., Ltd is not affiliated with or a distributor for Keysight. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

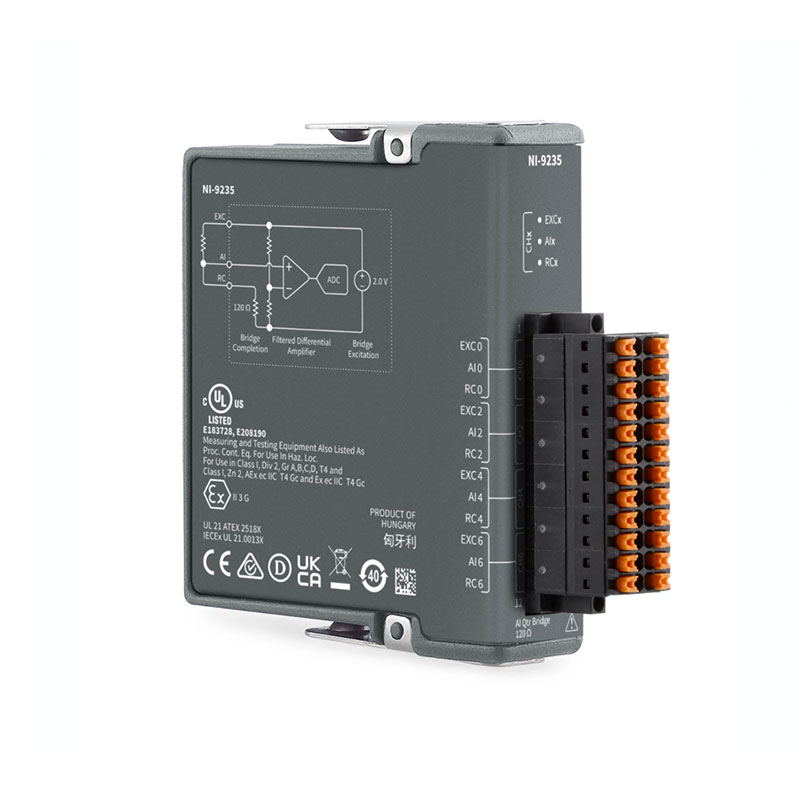

NI-9235 Strain/Bridge Input Module

10 kS/s/channel, 120 Ω Quarter-Bridge Strain Gage, 8-Channel C Series Strain/Bridge Input Module

The NI‑9235 measures dynamic strain on all channels simultaneously, allowing for synchronized, high-speed measurements. This capability is important for applications, such as impact tests, that require comparison across many channels at a particular instant in time. The NI‑9235 includes built-in voltage excitation for quarter-bridge sensors. It also has 60 VDC isolation and 1,000 Vrms transient isolation, providing high‑common‑mode noise rejection and increased safety.

Part Number(s): 785995-01
