NI-9244
800.00$
Condition: Second hand and in good condition(Please contact the website administrator to purchase a new device)
Purchase: Please contact the website administrator to verify the actual price before purchasing
Maximum Number of Differential Analog Input Channels: 0
Conformal Coated: No
Analog Input Voltage Range: 400 Vrms
Enclosed: Yes
Analog Input Resolution: 24 bits
Maximum Sample Rate: 50 kS/s/ch
Analog Input Isolation: 400 Vrms Ch-Earth Ground Isolation
Maximum Number of Single-Ended Analog Input Channels: 3
Front Connection Type: Screw Terminal, Screw Terminal, Screw Terminal, Screw Terminal
Simultaneous Sampling: Yes
Supported Hardware Platform: C Series
- Shanghai Cehuibao Technology Co., Ltd is not affiliated with or a distributor for Keysight. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

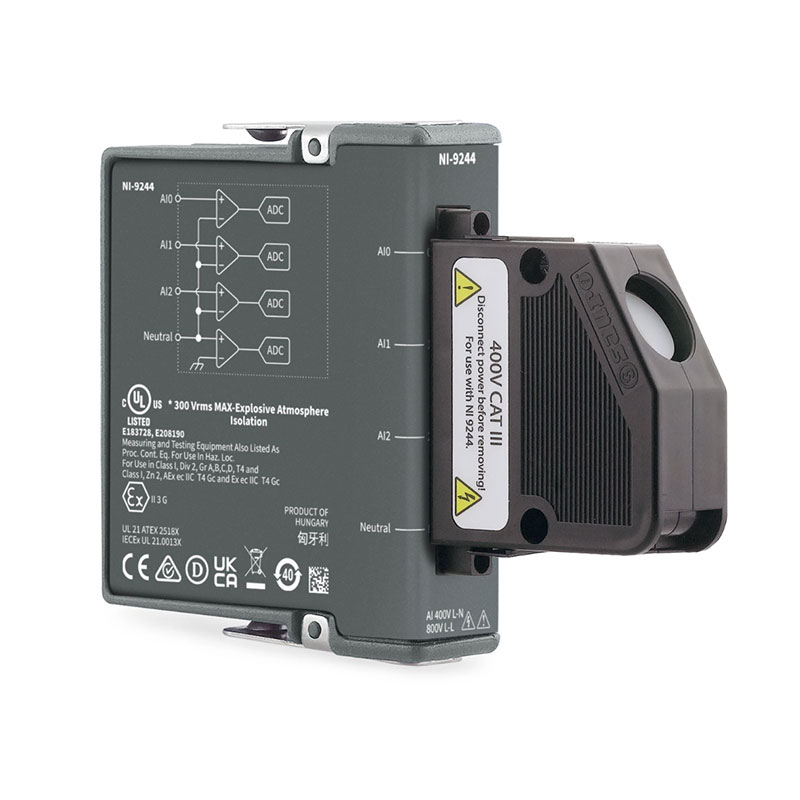

NI-9244 Voltage Input Module
400 Vrms L-N, 690 Vrms L-L, 50 kS/s/ch, 24-Bit, 3-Phase C Series Voltage Input Module
The NI‑9244 performs single-ended analog input. The wide measurement range makes it ideal for high-voltage measurement applications such as phasor measurements, power metering, power quality monitoring, industrial machinery, and motor test. You can also perform transient and harmonic analysis with high-speed simultaneous sampling. The NI‑9244 offers three channels, so you can connect single‑ or three‑phase measurement configurations such as WYE and delta. You can incorporate the NI‑9244 into systems to meet standards such as IEC 61010‑1, C37.90 and C37.60, IEC 60255‑22‑(1:7), IEC 60255‑1, C37.188 Class M and P, EMC section of IEC 60870, EMC sections of IEC 61850, IEC 61000‑4‑30 Class S, and IEC 61000‑4‑7.
Part Number(s): 783106-01
