PXIe-6545
Original price was: 1,000.00$.850.00$Current price is: 850.00$.
Condition: Second hand and in good condition(Please contact the website administrator to purchase a new device)
Purchase: Please contact the website administrator to verify the actual price before purchasing
Active Load: No
Number of Bidirectional Digital Channels: 32
Logic Levels And Range: 1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V
Supports Hardware Compare: No
Supports PMU: No
Signaling Type: Single-Ended
Maximum Generation Rate: 200 Mbits/s
Maximum Acquisition Rate: 200 Mbits/s
- Shanghai Cehuibao Technology Co., Ltd is not affiliated with or a distributor for Keysight. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

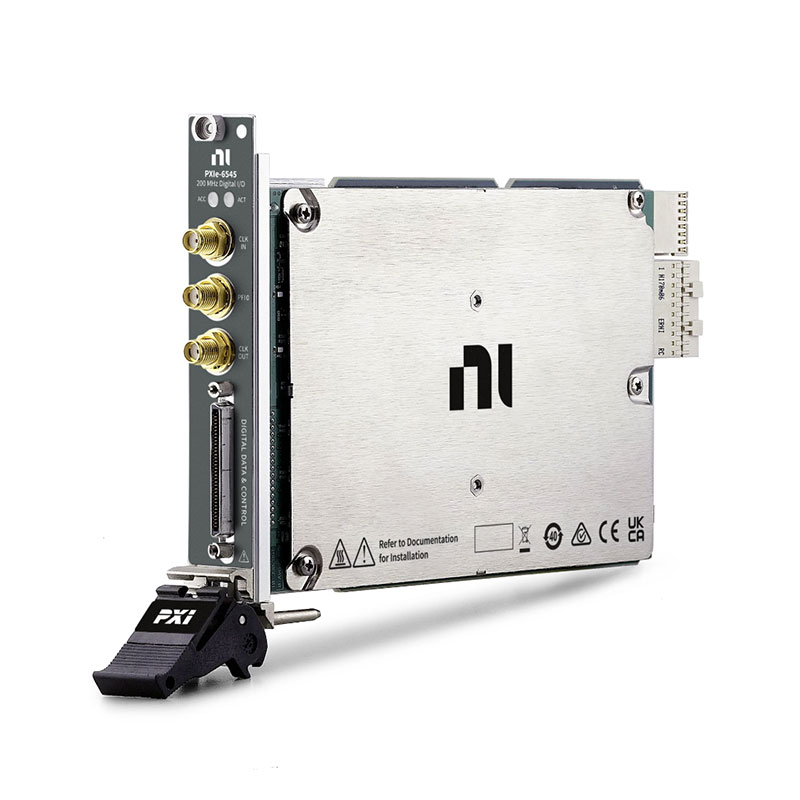

NI PXIe-6545 Digital Waveform Instrument
200 MHz, 32-Channel PXI Digital Waveform Instrument
The PXIe‑6545 is a digital waveform generator and analyzer for interfacing with 32 single-ended digital pins. The device is capable of sampling digital waveforms at up to 200 MHz and interfacing with common transistor‑to‑transistor logic (TTL) voltage levels. The PXI‑6545 also features advanced synchronization capabilities for building integrated mixed-signal test systems and per-bank digital timing features.
Part Number(s): 780993-02 | 780993-03
